WickRight Flat Roof Vent™ Kit #4
Exhausts moisture vapor and eliminates condensation build-up in roof systems!
Buying the Kit makes it easy!

Purchase Kit #4 when you are installing WickRight Flat Roof Vent independently of other WickRight passive ventilation products.

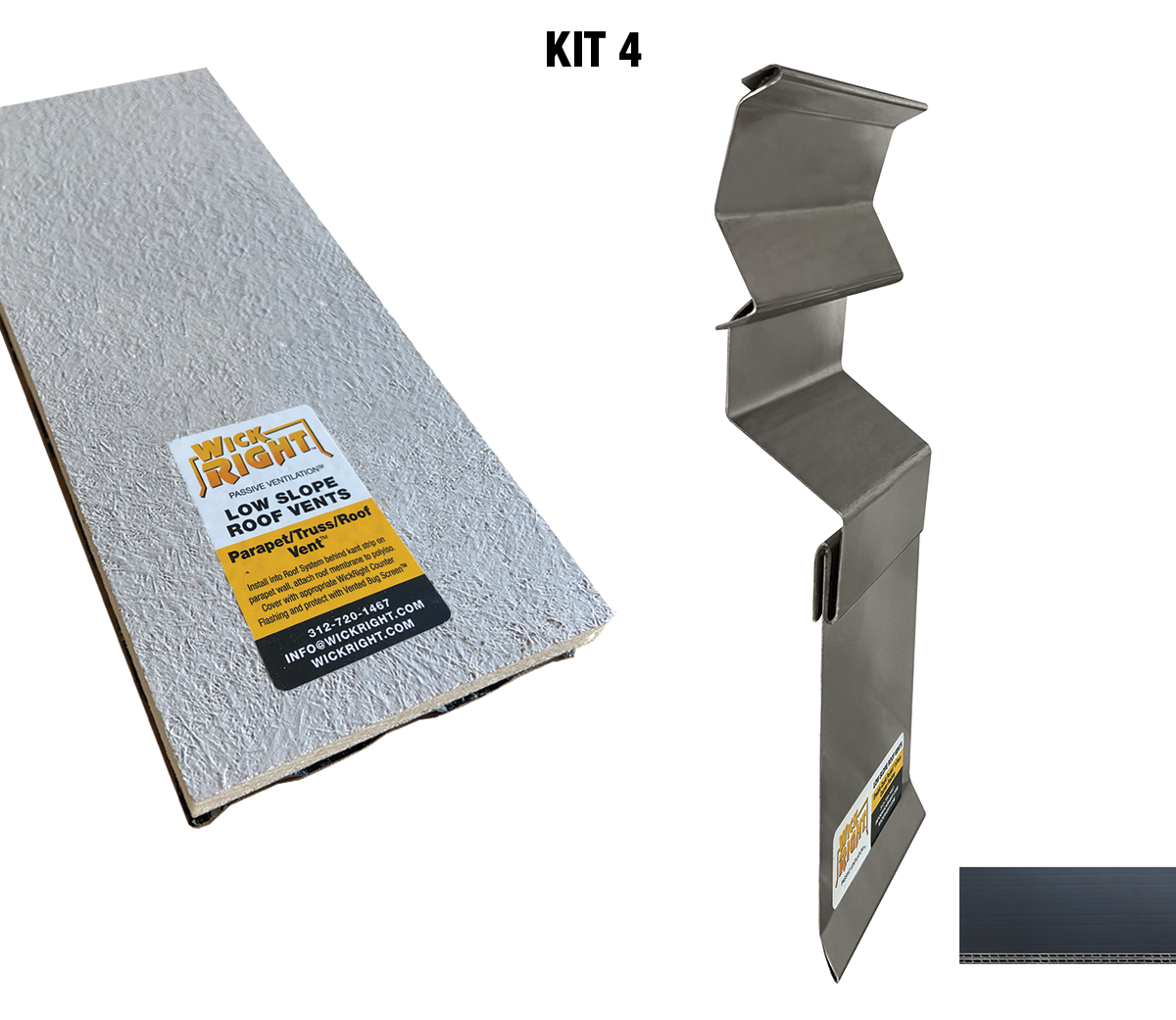

WickRight Flat Roof Vent Kit #4 includes:

• WickRight Flat Roof Vent™
  Sold in 4 foot x 4 foot panels
  Custom heights available, call to discuss prior to ordering.
• WickRight Double Caulk Pocket 3-piece Counter Flashing System™
  Sold in 10 foot lengths
  Stainless Steel in stock
  Copper and Kynar painted galvanized steel available, call to discuss
  Protects Flat Roof Vent from rain and snow when installed independently of other WickRight passive ventilation/counter flashing systems
• WickRight Bug Screen
  Sold in 4 foot lengths
  Keeps out insects

How it Works:
Patented WickRight Flat Roof Vent exhausts heat from under the roof membrane and beneath the plywood roof deck and interstitial roof space. It eliminates condensation build-up, which significantly extends the life of roof membranes, plywood sheathing and insulation. Flat Roof Vent also provides an interior rain screen for walls, allows moisture vapor to exit and separates the roof space from the masonry to keep it dry.

Flat Roof Vent works in conjunction with WickRight Parapet Vents, including Vented Receiver Clip, WickRight Metal Coping Vent, WickRight Clay Coping Vent. We recommend combining parapet and roof passive ventilation systems to maximize drying effect.

Consider also installing our Roof Vent extension (add to your order for an additional $25 per 100 ft) into the roof system to separate insulation from masonry walls – call for details.

Installation Info:

• Install vertically against parapet wall at the junction of wall and roof deck on low-slope roof buildings.
• Modified Bitumen can be torched directly to the 1/2" Polyiso Coverboard side of WickRight Low-Slope Roof Vent.
• No primer needed
• No roof termination bar is needed
• Flat Roof Vent should also be installed against Mechanical and Stairwell buildings to maximize passive ventilation of the entire roof system. Call to discuss the construction of your roof top buildings. Buildings with siding require different counter flashing profile.

Installation training available, call 312-720-1467 for details

How to Order:

• Measure length and height of interior side of parapet wall/roof perimeter, add 10%
• Choose height, 12", 16" or 48" - can be cut in field or order custom height
• Order kit in 20 foot lengths
  If your roof perimeter is 125', order 140' or 7 kits

Lead time/Shipping:
Flat Roof Vent is typically in stock, however, should fabrication be needed, it takes 7-10 business days. Shipping is typically via FedEx LTL Freight, 5-10 business days.

Shipping and Handling for 100' of 4' x 4' panels costs $200-$250 depending on destination.
Shipping and Handling for 100' of 4' x 4' panels costs $400-$450 depending on destination.
We will provide a shipping quote upon receipt of order.

Just In Time Delivery available in Chicagoland for $100 when delivered independently of other WickRight Passive Ventilation product orders.
